D-Chel Oil & Gas Products OPC Pvt. Ltd. Supply Corporation has a wide range of optimum quality beryllium copper products that are precisely designed for perfection. These products find extensive application in a host of industries and have gained huge appreciation for their excellent features such as durability and reliability. Incorporating large blocks of beryllium copper, or other copper Alloyss, in the planning stages of plastic mold design is essential for achieving faster production cycles and the highest return on INVESTMENT over the life of the mold.
Beryllium copper mold materials have hardness properties comparable to tool steels, but with superior thermal conductivity. Beryllium copper plate, block, bar and rounds are available in a choice of strength, hardness and thermal conductivity levels.
Beryllium copper is known to have high fatigue strength with high bending stress and has been used as an extremely long life, high reliable spring material.

D-Chel Oil & Gas Products OPC Pvt. Ltd. Supply Corporation has a wide range of optimum quality Beryllium copper products that are precisely designed for perfection. These products find extensive application in a host of industries and have gained huge appreciation for their excellent features such as durability and reliability.
Specifications: Elevated temperature properties
Beryllium copper can be used in a wide range of temperatures and has an excellent properties at elevated temperatures.
High strength
Beryllium copper can attain high tensile strength, to a maximum of 1500n / mm 2, by precipitation hardening and therefore can endure very high bending stress as a spring material
High electrical conductivity
The electrical conductivity of beryllium copper is 20 to 60% iacs, depending on type. Therefore beryllium copper has been used as a high current density spring material.
Other Information
Minimum Order Quantity: 25 Kilogram
Production Capacity: AS REQUIRED
Delivery Time: EX-STOCK
Packaging Details: STANDARD

Beryllium Copper C17200 / Beryllium Copper Alloys 25
European Standards :
CuBe2, DIN 2.1247, CW101C to EN BeCu
Chemical component:

Alloys number	Be	Ni Co	Ni Co Fe	Be Ni Co Fe Cu
C17200 / Alloys 25	1.8-2.0	≥0.2	≤0.6	≥99.5

Status	Tensile strength (kg/mm3)	Hardness (HV)	Conductivity (IACS%)	Elongation (%)
H	70-85	210-240	22	2-8
1/2H	60-71	160-210	22	5-25
O	42-55	90-160	22	35-70

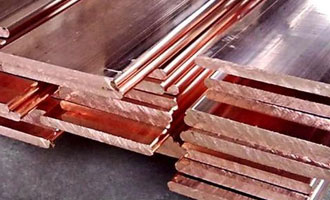

We D-Chel Oil & Gas Products OPC Pvt. Ltd. offers Beryllium Copper Flat Bar.
Chemical component:

Alloys number	Be	Ni Co	Ni Co Fe	Be Ni Co Fe Cu
C17200 / Alloys 25	1.8-2.0	≥0.2	≤0.6	≥99.5

Status	Tensile strength (kg/mm3)	Hardness (HV)	Conductivity (IACS%)	Elongation (%)
H	70-85	210-240	22	2-8
1/2H	60-71	160-210	22	5-25
O	42-55	90-160	22	35-70

Beryllium Copper Mechanical property:(after heat treatment)

Status	Tensile strength (kg/mm3)	Hardness (HV)	Conductivity (IACS%)	Elongation (%)
H	130-151	380-420	22	1-5
1/2H	126-147	370-410	22	2-7
O	112-135	350-339	22	3-11

Typical Physical Properties: Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
Physical property:
1.High strength
2.High hardness
3.High elasticity
4.Superior fatigue resistance
5.Superior abrasion resistance
6.Superior mouldability and isotropy

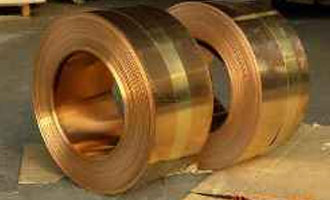

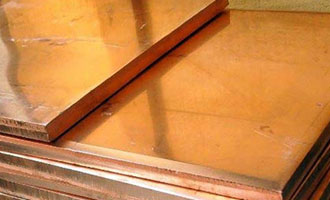

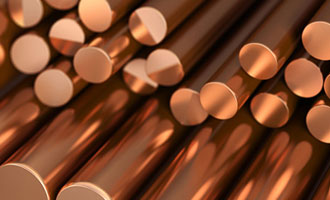

D-Chel Oil & Gas Products OPC Pvt. Ltd. offer a wide assortment of Beryllium Copper Rod, Beryllium Copper strips, beryllium copper rods, beryllium copper sheet,copper beryllium rod, copper beryllium rods, copper beryllium strips, copper beryllium sheet. it is a metal Alloys of copper and 0.5 to 2% beryllium, and sometimes with other Alloysing elements. Possessing significant metal working and operating performance qualities it is widely demanded by Engineering, Electrical and Electronics industries. Properties of Beryllium copper.
Specifications :- Grade
Dimensionally accurately
Features:
CuBe2-UNS C17200, CuBe2Pb-UNS C17300, CuCo2Be-UNS C17500, CuNi2Be-UNS.C17510, CuCo1Ni1Be Test Certificate: MTC, Lab TC from Govt. Approved Lab with Third Party Inspection.
Corrosion Resistant
Good Conductivity
High tensile strength
Strong Resonance
Abrasion Property
