Industrial flanges

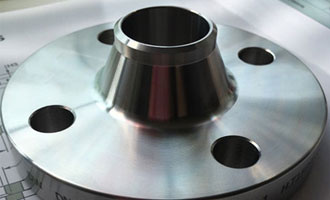

Weld Neck Flanges

  • Weld Neck Flanges Size: 1/2”NB TO 48”NB
  • Weld Neck Flanges Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
EUROPEAN SERIES:

    PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100

WELD NECK FLANGES GRADES:
  • Stainless Steel Threaded Flange: ASTM A182 Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Threaded Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  • Alloy Steel Threaded Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Threaded Flange: ASTMA 105 Gr. F42/46/52/56/60/65/70
  • Low Temperature Carbon Steel Threaded Flange: A350 LF2/A350 LF3

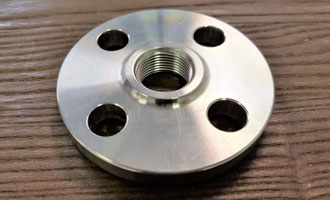

Threaded Flanges

  • Threaded Flanges Size: 1/2"NB TO 48"NB
  • Threaded Flanges Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
SPECIFICATIONS AS PER CLIENT REQUIREMENTS:

    ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

THREADED FLANGES GRADE:
  • Stainless Steel Threaded Flange: ASTM A182 Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Threaded Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  • Alloy Steel Threaded Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Threaded Flange: ASTMA 105 Gr. F42/46/52/56/60/65/70
  • Low Temperature Carbon Steel Threaded Flange: A350 LF2/A350 LF3

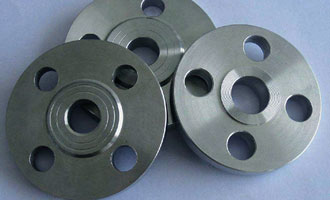

Slip On Flanges

SPECIFICATIONS:
  • Slip-on Flanges Size: 1/2"NB TO 48"NB
  • Slip-on Flanges Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
  • Slip-on Flanges European Series: PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100 DIN
  • Slip-on Flanges specification as per the international standard: ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
  • Slip-on Flanges Facing Types: American Series: Flat Face(FF), Raised Face(RF), Tongue (T), Groove (G), Female (F), Male (M),Ring Joints Face (RJ)European Series: Type A (Flat Face), Type B (Raised Face), Type C (Tongue), Type D (Groove), Type E (Spigot), Type F (Recess), Type G (O-Ring Spigot), Type H (O-Ring Groove)
  • Stainless Steel Slip on Flange: ASTM A182 Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Slip on Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61
  • Alloy Steel Slip on Flange: AS SORF Flange ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Slip on Flange: ASTMA 105 Gr. F42/ 46 / 52 /56 / 60 / 65 / 70
  • Low Temperature Carbon Steel Slip on Flange: A350 LF2/A350 LF3
  • Nickel Alloy Slip on Flange Standard: ASTM / ASME SB 564 / 160 / 472

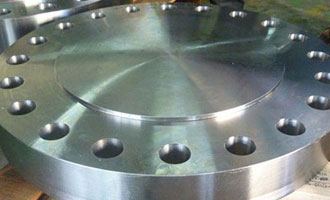

Blind Flanges

SPECIFICATIONS AS PER CLIENT REQUIREMENTS:
  • ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
BLIND FLANGES GRADE:
  • Stainless Steel Blind Flange: ASTM A182 Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI,316H, 316L, 316LN,317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Blind Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  • Alloy Steel Blind Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Blind Flange: ASTMA 105 Gr. F42/46/52/56/60/65/70
  • Low Temperature Carbon Steel Blind Flange: A350 LF2/A350 LF3
BLIND FLANGES:
  • Blind Flanges Size: 1/2"NB TO 48"NB
  • Blind Flanges Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

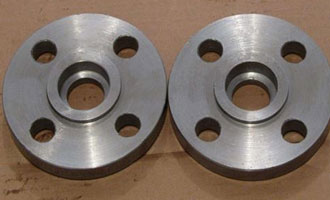

Socket Weld Flanges

  • Socket weld Flanges Size: 1/2"NB TO 48"NB
  • Socket weld Flanges Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
SPECIFICATIONS AS PER CLIENT STANDARD:
  • ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
SOCKET WELD FLANGES GRADE:
  • Stainless Steel Socket Weld Flange: ASTM A182
  • Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Socket Weld Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  • Alloy Steel Socket Weld Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Socket Weld Flange: ASTMA 105 Gr. F42/46/52/56/60/65/70
  • Low Temperature Carbon Steel Socket Weld Flange: A350 LF2/A350 LF3

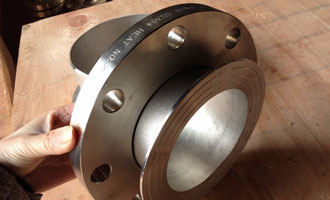

Lap Joint Flanges

  • Lap joint Flanges Size: 1/2"NB TO 24"NB
  • Lap joint Flanges Standard : Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc
LAP JOINT FLANGES GRADE:
  • Stainless Steel Lapped Joint Flange: ASTM SA 240 Grade : 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Lapped Joint Flange: S 31803 , S 32205.
  • Alloy Steel Lapped Joint Flange: ASTM SA 387 Grade 1/5/9/11/22/91
  • Carbon Steel Lapped Joint Flange: ASTM A 36, IS 2062
  • Low Temperature Carbon Steel Lapped Joint Flange: A 516 GR.70


Reducing Flanges

  • Reducing Flanges Size: 1/2"NB TO 48"NB
  • Reducing Flanges Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard: ND-6,10, 16, 25, 40 Etc.
SPECIFICATION AS PER THE INTERNATIONAL STANDARD:
  • ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
REDUCING FLANGES GRADE:
  • Stainless Steel Reducing Flange: ASTM A182 Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Reducing Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61
  • Alloy Steel Reducing Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Reducing Flange: ASTMA 105 Gr. F42/46/52/56/60/65/70
  • Low Temperature Carbon Steel Reducing Flange: A350 LF2/A350 LF3
REDUCING FLANGES STANDARD:
  • ANSI: ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S: BS4504, BS4504, BS1560, BS10

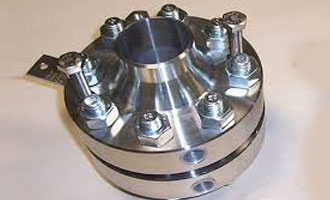

Orifice Flanges

  • Orifice Flanges Size: 1/2"NB TO 10"NB IN
  • Orifice Flanges Class: 150 LBS, 300 LBS
ORIFICE FLANGES GRADE:
  • Stainless Steel Orifice Flange: ASTM A182
  • Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Orifice Flange: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  • Alloy Steel Orifice Flange: ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Orifice Flange: ASTMA 105 Gr. F42/46/52/56/60/65/70
  • Low Temperature Carbon Steel Orifice Flange: A350 LF2/A350 LF3
ORIFICE FLANGES STANDARD:
  • ANSI: ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S: BS4504, BS4504, BS1560, BS10

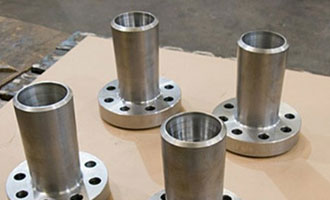

Long Weld Neck Flanges

  • Weld Neck Flanges Size: 1/2"NB TO 48"NB
  • Weld Neck Flanges Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
  • European Series: PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100
  • DIN Standard ND: 6,10, 16, 25, 40 Etc
SPECIFICATION AS PER THE INTERNATIONAL STANDARD:
  • ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
WELD NECK FLANGES GRADES:
  • Stainless Steel Weld Neck Flanges: ASTM A182
  • Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Weld Neck Flanges: ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  • Alloy Steel Weld Neck Flanges: ASTM SA 182 F1/F5/F9/F11/F22/F91
  • Carbon Steel Weld Neck Flanges: ASTMA 105 Gr. F42/46/52/56/60/65/70
  • Low Temperature Carbon Steel Weld Neck Flanges: A350 LF2/A350 LF3
WELD NECK FLANGES STANDARD:
  • ANSI: ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN:DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S: BS4504, BS4504, BS1560, BS10

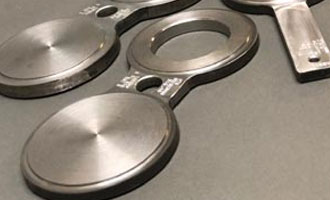

Spectacle Blind Flanges

SPECTACLE BLIND FLANGES:
  • Spectacle Blind Flanges Size: 1/2"NB TO 48"NB
  • Spectacle Blind Flanges Standard: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc
SPECIFICATIONS AS PER THER INTERNATIONAL STANDARD:
  • ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
SPECTACLE BLIND FLANGES GRADES:
  • Stainless Steel Spectacle Blind Flange: ASTM SA 240
  • Grade: 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
  • Duplex Steel Spectacle Blind Flange Grade: S 31803, S 32205
  • Alloy Steel Spectacle Blind Flange: ASTM SA 387 Grade 1/5/9/11/22/91
  • Carbon Steel Spectacle Blind Flange: ASTM A 36, IS 2062
  • Low Temperature Carbon Steel Spectacle Blind Flange: A 516 GR.70
SPECTACLE BLIND FLANGES STANDARD:
  • ANSI: ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S: BS4504 , BS4504, BS1560, BS10
